Author Topic: Suspension/Factory Markings  (Read 7647 times)
Bad88t-top
Senior Member
****
Offline Offline

Posts: 415


Bill


Email
« Reply #30 on: February 14, 2015, 04:32:47 PM »

Don.  On a power drum car, is the brake booster suppose to be cad plated or black?  I'm seeing them both ways so I figured you did your homework before plating yours.
Logged

TX9 70 Charger RT, 440 six pack, 4 speed, Track Pack
EB5 70 Charger RT, 440-4 speed, Track Pack
EB7 70 Charger RT SE, 440, auto, loaded w power sunroof
EB5 70 Charger RT SE, 440 six pack, 4 speed, Track Pack
FJ5 70 Challenger  440, 727, 3:91s
Y2 69 Road Runner w/ 500" stroker
2012 2500 HD Dura
472 R/T SE
Global Moderator
Hall of Fame Member
*****
Offline Offline

Posts: 1898



WWW
« Reply #31 on: February 14, 2015, 04:59:32 PM »

DD, if I may.

DD had problems with Totally Auto.  Pretty sure that's who he sent it off to originally.

Drum cars had the cad plated booster with natural colored master.
Hemi drum cars had the Bendix with the drum master.  (All painted black together as one unit)
Hemi disc cars had the Bendix with the disc master.  (All painted black together as one unit)
Disc cars had the Bendix with the disc master.    (All painted black....)

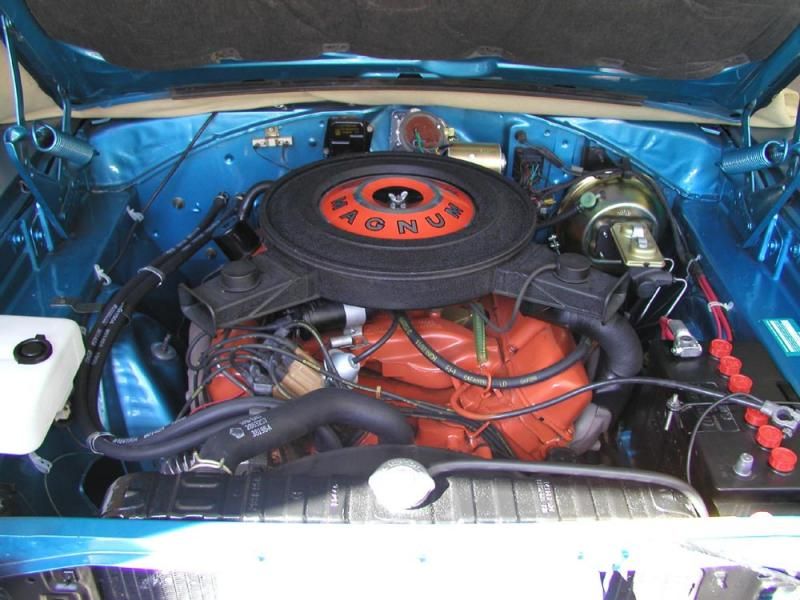

One of the last things I did to my blue car.  I was actually already paralyzed by then.
Lucky in that Booster Dewey is right across the river.  I think he did mine for like a hundred bucks, quite a while ago.

Logged

Username is rtmike other forums.

Live life like every Day's your last.
I like to sleep For I'm walking N my dreams
472 R/T SE
Global Moderator
Hall of Fame Member
*****
Offline Offline

Posts: 1898



WWW
« Reply #32 on: February 14, 2015, 05:07:36 PM »

Curious.  I still see yellow lettered voltage regulators on over the top restorations.

The lettering is suppose to be white IIRC.  I had a white one stenciled up within my build date time frame & use it.

And they sell the white lettered ones now to boot.  It used to be all you could get where the yellow lettered ones.
Logged

Username is rtmike other forums.

Live life like every Day's your last.
I like to sleep For I'm walking N my dreams
Bad88t-top
Senior Member
****
Offline Offline

Posts: 415


Bill


Email
« Reply #33 on: February 14, 2015, 06:26:47 PM »

Thanks Mike.  Now I need to find someone to template mine.  I'm under way on the sunroof car.  Check out my Facebook page for updates.  Thx
Logged

TX9 70 Charger RT, 440 six pack, 4 speed, Track Pack
EB5 70 Charger RT, 440-4 speed, Track Pack
EB7 70 Charger RT SE, 440, auto, loaded w power sunroof
EB5 70 Charger RT SE, 440 six pack, 4 speed, Track Pack
FJ5 70 Challenger  440, 727, 3:91s
Y2 69 Road Runner w/ 500" stroker
2012 2500 HD Dura
472 R/T SE
Global Moderator
Hall of Fame Member
*****
Offline Offline

Posts: 1898



WWW
« Reply #34 on: February 15, 2015, 06:09:50 PM »

Booster Dewey out of Portland is who lots of big time shops use.
Logged

Username is rtmike other forums.

Live life like every Day's your last.
I like to sleep For I'm walking N my dreams
Dodge Don
Administrator
Hall of Fame Member
*****
Offline Offline

Posts: 3500


The future is unwritten....


WWW
« Reply #35 on: February 15, 2015, 07:23:48 PM »

I had Booster Dewey fix Totally Autos crap job.
Logged

1970 Dodge Registry You Tube Channel
Bad88t-top
Senior Member
****
Offline Offline

Posts: 415


Bill


Email
« Reply #36 on: February 16, 2015, 06:30:36 AM »

Thanks guys.   Mike.  As i inspected by booster today it shows no signs of cad plating anywhere.  Black paint everywhere.   Is it possible that's the way it came?
Logged

TX9 70 Charger RT, 440 six pack, 4 speed, Track Pack
EB5 70 Charger RT, 440-4 speed, Track Pack
EB7 70 Charger RT SE, 440, auto, loaded w power sunroof
EB5 70 Charger RT SE, 440 six pack, 4 speed, Track Pack
FJ5 70 Challenger  440, 727, 3:91s
Y2 69 Road Runner w/ 500" stroker
2012 2500 HD Dura
Dodge Don
Administrator
Hall of Fame Member
*****
Offline Offline

Posts: 3500


The future is unwritten....


WWW
« Reply #37 on: February 16, 2015, 08:51:29 AM »

I am pretty sure the Midland Ross booster should be gold cad finish.
Logged

1970 Dodge Registry You Tube Channel
Bad88t-top
Senior Member
****
Offline Offline

Posts: 415


Bill


Email
« Reply #38 on: February 16, 2015, 08:56:21 AM »

Thanks Don,   That's strange because even the back side has black paint flaking off of it with bare metal underneath.  I would think there would be a sign of gold cad plating somewhere.    Crazy,  I'll be calling Booster Dewey today, doing a search now for his contact info.
Thanks guys for the help.   Bill
Logged

TX9 70 Charger RT, 440 six pack, 4 speed, Track Pack
EB5 70 Charger RT, 440-4 speed, Track Pack
EB7 70 Charger RT SE, 440, auto, loaded w power sunroof
EB5 70 Charger RT SE, 440 six pack, 4 speed, Track Pack
FJ5 70 Challenger  440, 727, 3:91s
Y2 69 Road Runner w/ 500" stroker
2012 2500 HD Dura
472 R/T SE
Global Moderator
Hall of Fame Member
*****
Offline Offline

Posts: 1898



WWW
« Reply #39 on: February 16, 2015, 01:06:47 PM »

IIRC, mine was painted black over the top of the cad.
Logged

Username is rtmike other forums.

Live life like every Day's your last.
I like to sleep For I'm walking N my dreams
Bad88t-top
Senior Member
****
Offline Offline

Posts: 415


Bill


Email
« Reply #40 on: February 16, 2015, 01:09:46 PM »

I talked to Dewey today and apparently since my booster doesn't have the clamp around it it's a Bendix drum brake booster.   He said a majority of the ones he's seen were painted black but he's also seen some strange things over the years.

$120 and I'll be rebuilt and ready to go.   I told him to leave mine bare blasting so I can paint it myself.   I'm picky . lol
Logged

TX9 70 Charger RT, 440 six pack, 4 speed, Track Pack
EB5 70 Charger RT, 440-4 speed, Track Pack
EB7 70 Charger RT SE, 440, auto, loaded w power sunroof
EB5 70 Charger RT SE, 440 six pack, 4 speed, Track Pack
FJ5 70 Challenger  440, 727, 3:91s
Y2 69 Road Runner w/ 500" stroker
2012 2500 HD Dura
472 R/T SE
Global Moderator
Hall of Fame Member
*****
Offline Offline

Posts: 1898



WWW
« Reply #41 on: February 17, 2015, 06:22:31 PM »

It was about a decade ago or so but we had a big thread going on our boosters when I was rebuilding mine.
Like you, I researched the crap out of it & since I ended up going gold cad, pretty sure my consensus was cad being correct.   There's a few things I look at right away in engine bays.  Not because it's eye level for me either.
-the booster/mc
-whether or not there's an orange box on the firewall.  Firewall in general.
-top of front valance.  Only survivor rigs will I check.
-last but not least.  The front rad. support.  This one is a no brainer.  No one can argue whether it was done at the factory unless of course it was a color that didn't need it (black, I've heard of some f8 green being not done & I think blue).  But this is a big time pet peeve of mine.  Sure, it's your car to do what you want with it but don't proclaim it being a true factory representation.

There's a member with an EV2 Charger factory Hemi car.  He was very informative.  I'll see if I can rattle his cage & get him to respond.
He has a power drum car so naturally I thought Midland Ross.  Since the Hemi needed a booster with the brackets that pulled it away from the firewall they used the Bendix with the proper small drum master cylinder & painted it as one unit like the regular Bendix/disc mc.
I had never knew that let alone seen it.
Logged

Username is rtmike other forums.

Live life like every Day's your last.
I like to sleep For I'm walking N my dreams
70-Ottawa
Hall of Fame Member
*****
Offline Offline

Posts: 637



WWW
« Reply #42 on: July 29, 2015, 09:07:30 PM »

I'm trying to decide if I'm gonna go this far or not
Wow!!-- I will never do this - the only numbers matching on my charger are the spark plug model #s ---
Logged


1970 Dodge Charger / 440 Nuttin Matches
2007 Harley Road Glide
Grew up in a 1967 Plymouth VIP with 383 "Commando"
Dodge Don
Administrator
Hall of Fame Member
*****
Offline Offline

Posts: 3500


The future is unwritten....


WWW
« Reply #43 on: June 20, 2016, 07:51:14 AM »

.
Logged

1970 Dodge Registry You Tube Channel
Kent
Newbie
*
Offline Offline

Posts: 49



« Reply #44 on: June 13, 2017, 11:49:41 AM »

Thanks guys!
Logged

Kent

70 Charger 500
80 Roadrunner
15 Ram SLT
